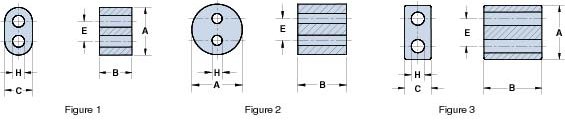

| Part Number | Fig. | Typical Impedance (ohms)1 | Wt (g) | Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 10 MHz | 25 MHz | 100 MHz | 250 MHz | 1GHz | A | B | C | E | H | |||
| BN-43-2402 | 1 | 10 | 40 | 65 | 85 | 95 | 120 | 0.5 | 7.0 .276 |
6.2 .244 |
4.2 .160 |
2.9 .114 |
1.7 .071 |
| BN-61-2402 | 15 | 50 | 75 | 100 | 130 | ||||||||
| BN-73-2402 | 35 | 70 | 65 | 55 | 50 | ||||||||
| BN-43-202 | 1 | 15 | 75 | 125 | 180 | 200 | 140 | 3.7 | 13.3 .525 |
14.35 .565 |
7.5 .295 |
5.7 .225 |
3.8 .150 |
| BN-61-202 | 25 | 80 | 150 | 180 | 270 | ||||||||
| BN-73-202 | 55 | 120 | 100 | 65 | 60 | ||||||||
| BN-43-3312 | 3 | 40 | 190 | 300 | 410 | 320 | 100 | 18 | 19.45 .765 |
25.4 1.000 |
9.5 .375 |
9.9 .390 |
4.75 .187 |
| BN-43-7051 | 3 | 50 | 240 | 400 | 530 | 350 | 100 | 48 | 28.7 1.130 |
28.7 1.130 |
14.25 .560 |
14.0 .550 |
6.35 .25 |
| BN-61-002 | 3 | 75 | 250 | 600 | 670 | 290 | 46 | 30.2 1.190 |
28.7 1.130 |
15 .590 |
14.0 .550 |
6.8 .268 |
|
