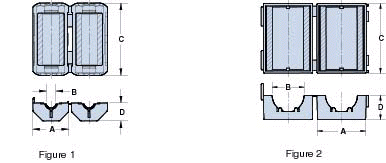

Dimensions in bold type are in millimeters, italic numbers are nominal in inches.
| Part Number | Fig. | Typical Impedance (ohms) | Dimensions | Max. Cable Dia. | |||||
|---|---|---|---|---|---|---|---|---|---|
| 10 MHz | 25 MHz | 100 MHz | A | B | C | D | |||
| 2X-31-181S2 | 1 | 80 | 125 | 260 | 31.0 /1.22 | 13.0 /.512 | 39.4 /1.55 | 15.2 /.600 | 13.3 /.525 |
| 2X-31-281S2 | 1 | 90 | 150 | 310 | 20.0 / .788 | 6.6 /.260 | 39.4 /1.55 | 9.78 /.385 | 7.0 /.275 |
| 2X-43-151P2 | 2 | 159 | 245 | 29.0 /1.14 | 13.4 /.528 | 32.5 /1.28 | 14.8 /.583 | 12.7 /.500 | |
| 2X-43-251P2 | 2 | 171 | 275 | 17.9 / .705 | 7.1 /.276 | 32.5 /1.28 | 9.2 /.362 | 6.35 /.250 | |
| 2X-44-451S2 | 1 | 175 | 365 | 38.6 /1.52 | 18.35 /.722 | 47.5 /1.87 | 19.15 /.754 | 19.0 /.75 | |
