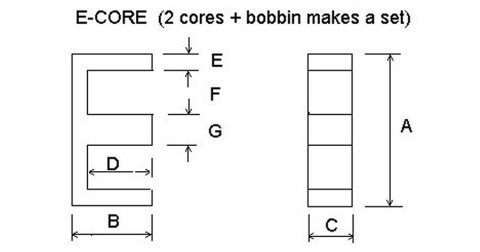

| Set Part No. | Physical Dimensions(mm) of Single E-core | Power* | ||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||
| EA-77-188 | 19.3 | 8.07 | 4.75 | 5.72 | 2.36 | 4.88 | 4.75 | 5 watts |
| EA-77-250 | 25.4 | 9.65 | 6.35 | 6.48 | 3.18 | 6.35 | 6.35 | 13 watts |
| EA-77-375 | 34.9 | 14.27 | 9.53 | 9.53 | 4.75 | 7.92 | 9.53 | 60 watts |
| EA-77-500 | 41.28 | 16.51 | 12.70 | 10.29 | 6.35 | 7.93 | 12.70 | 140 watts |
| EA-77-625 | 42.67 | 20.96 | 15.37 | 15.06 | 5.94 | 9.53 | 11.89 | 230 watts |
|
