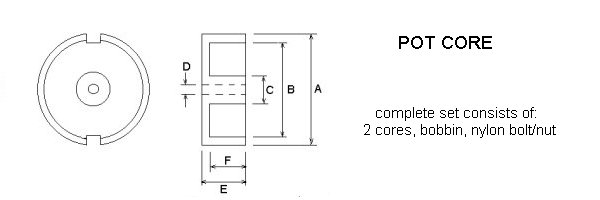

| Set Part No. | Physical Dimensions (mm) of single core | Power* | |||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||
| PC-1107-77 | 11.10 | 9.20 | 4.60 | 2.10 | 3.21 | 2.27 | 3 watts |
| PC-1811-77 | 18.00 | 15.25 | 7.45 | 3.10 | 5.27 | 3.70 | 5 watts |
| PC-2616-77 | 25.50 | 21.60 | 11.30 | 5.55 | 8.05 | 5.60 | 30 watts |
| PC-3622-77 | 35.60 | 30.40 | 15.90 | 5.55 | 10.85 | 7.40 | 110 watts |
|
